Overview
"Joulon" is one of the leading name in design, engineering and manufacturing of Oil field equipment. Now Joulon has developed state-of-the-art technology and engineering solutions for Jacking gear system.
Joulon has established gear technology with qualified & dedicated technical staff having vast experience in gear design, production and quality.
Joulon has served many offshore & onshore jacking gear related troubleshooting to clients.
Service & Support
Jacking gear – MLT
Service & refurbishment of jacking gear train parts
(A) Primary gear structure:
- 7T ¼�P pinion
- Inboard hub structure
- Outboard hub insert Structure
- 32T ½�P gear structure
(B) Secondary gear structure:
- 7T ½�P pinion
- Inboard hub insert
- Outboard flange hub structure
- 46T 1�P gear structure
LTI Jacking System
7T ¼� P Climbing Pinion
Before Refurbishment
After Refurbishment
32T ½" P Gear Structure
Before Refurbishment
After Refurbishment
Primary inboard hub structure
Before Refurbishment
After Refurbishment
Primary outboard hub insert structure
Before Refurbishment
After Refurbishment
46T 1"P Gear structure
Before Refurbishment
After Refurbishment
NOV Jacking System

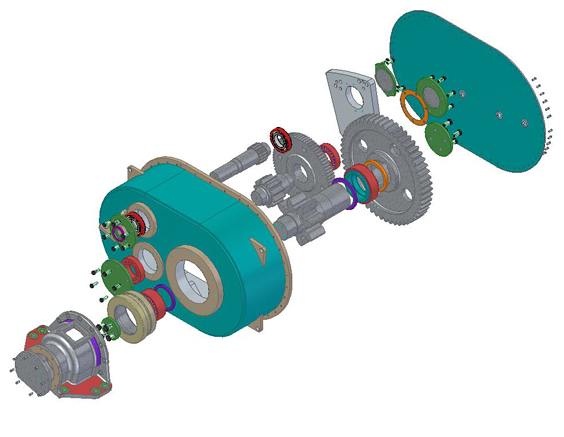

NOV NS-400 20:1 Reduction Gearbox view
Refurbishment of NOV, NS 400 20:1 Reduction Gearbox
Before Refurbishment
After Refurbishment
Before Refurbishment
After Refurbishment
NOV NS-400 20:1 Reduction Gearbox Assembly

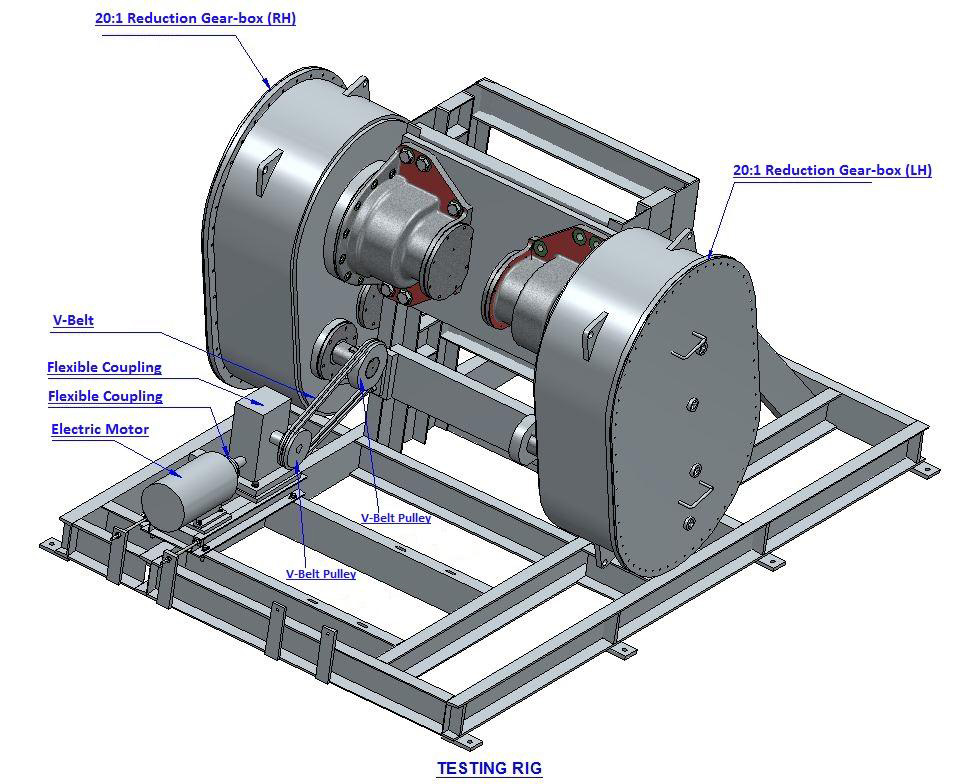

Testing Rig for NOV NS-400 Jacking Gearbox
Ready for Dispatch
NOV - Jacking pinion assembly
Before Refurbishment
After Refurbishment
READY FOR DISPATCH
Refurbishment of NOV, Climbing Pinion Shaft Assembly
40 teeth gear structure
Before Refurbishment
After Refurbishment
